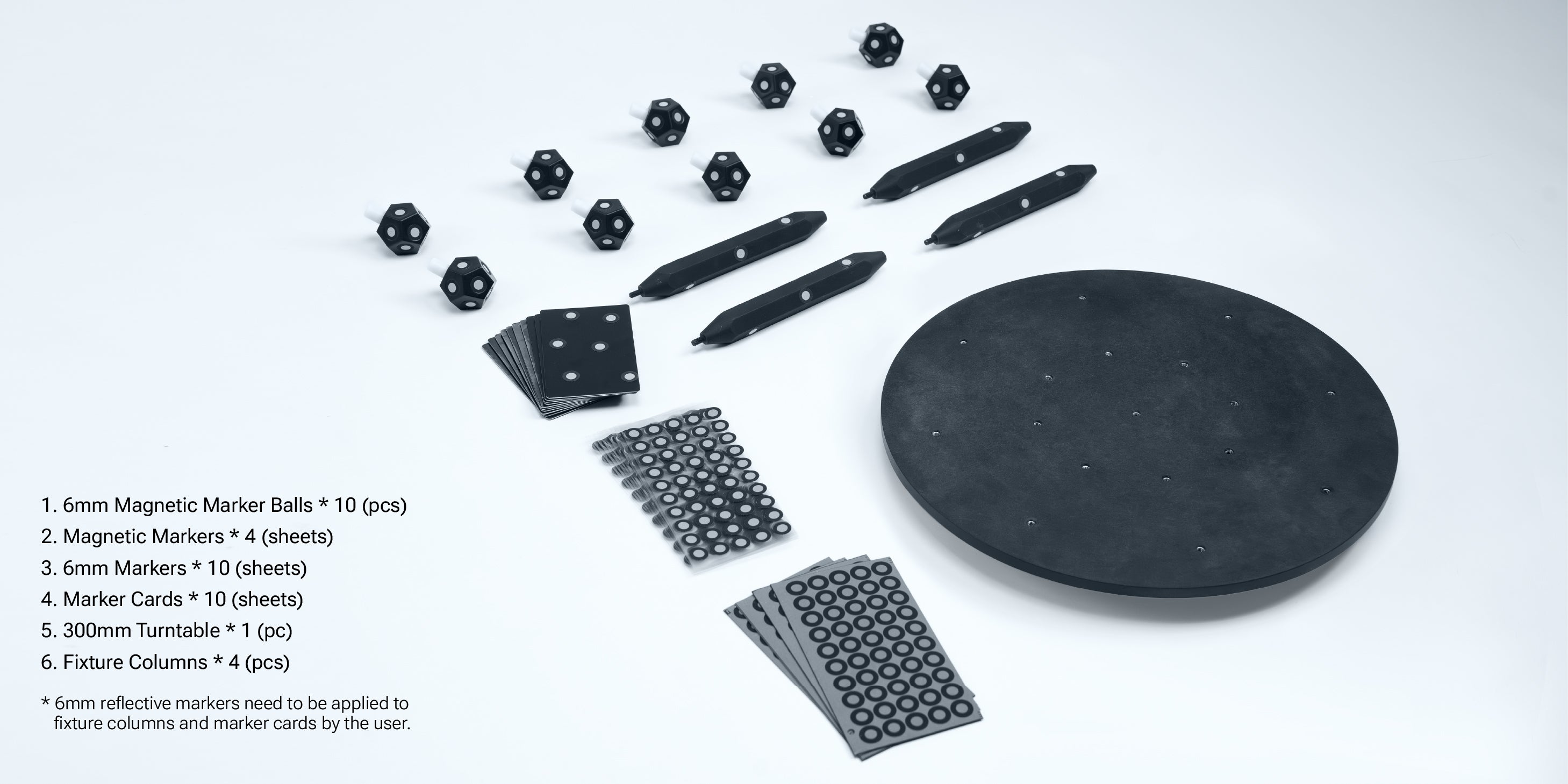

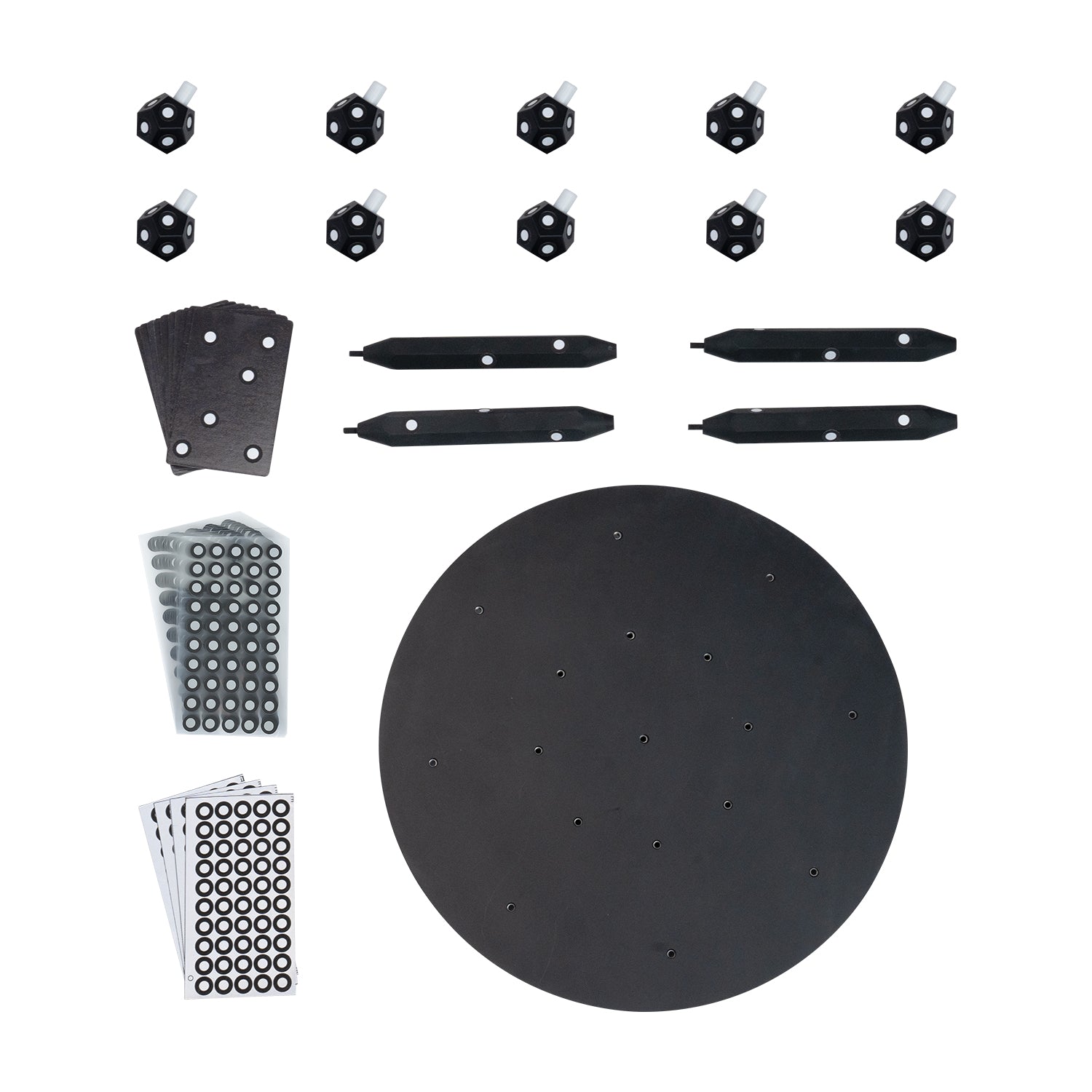

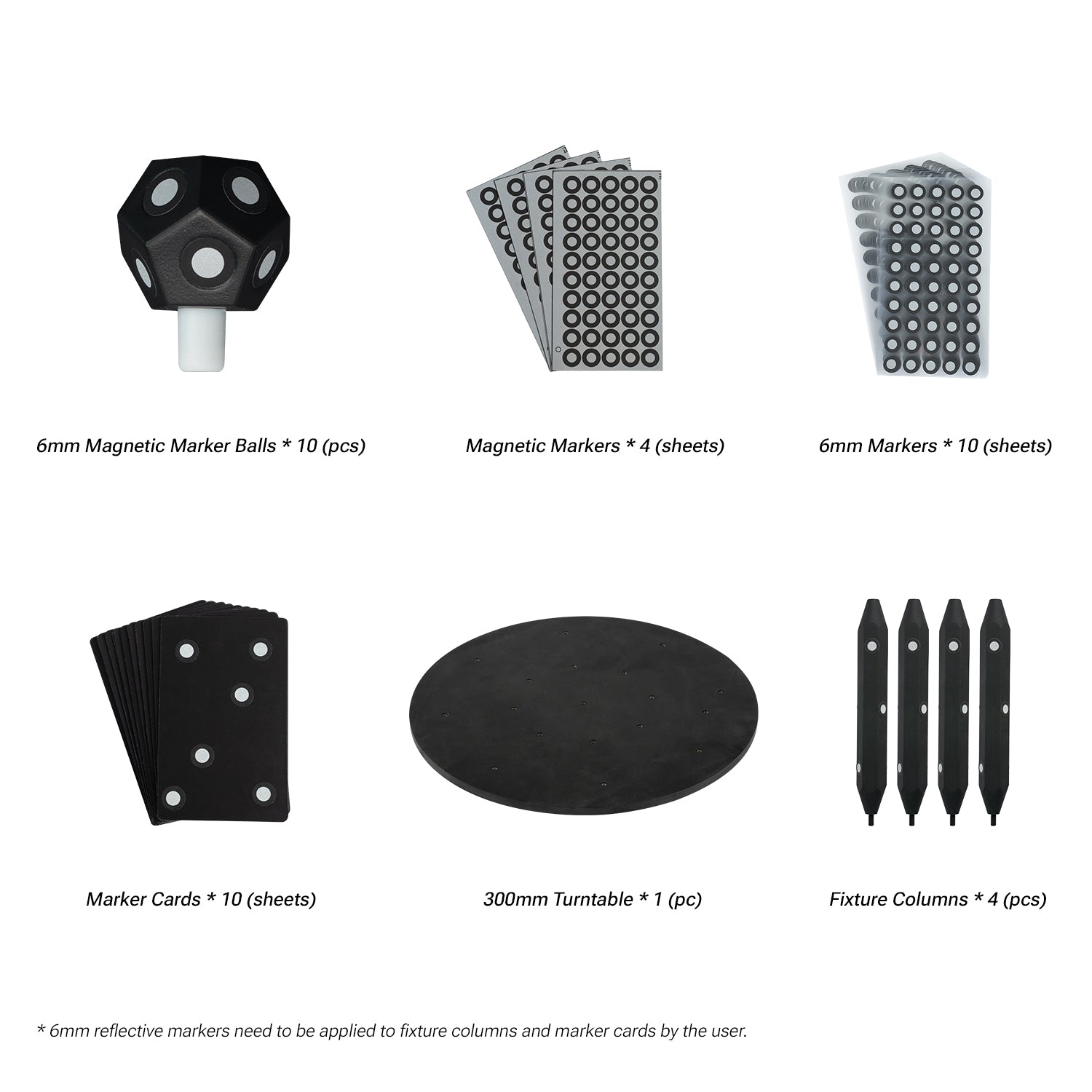

What's in The Box

• 6mm Magnetic Marker Balls * 10 (pcs)
• Magnetic Markers * 4 (sheets)
• 6mm Markers * 10 (sheets)
• Marker Cards * 10 (sheets)
• 300mm Turntable * 1 (pc)
• Fixture Columns * 4 (pcs)

* 6mm reflective markers need to be applied to fixture columns and marker cards by the user.

Improve Scan Quality

Provides stable and accurate tracking for 3D scanning, especially on featureless or complex surfaces.

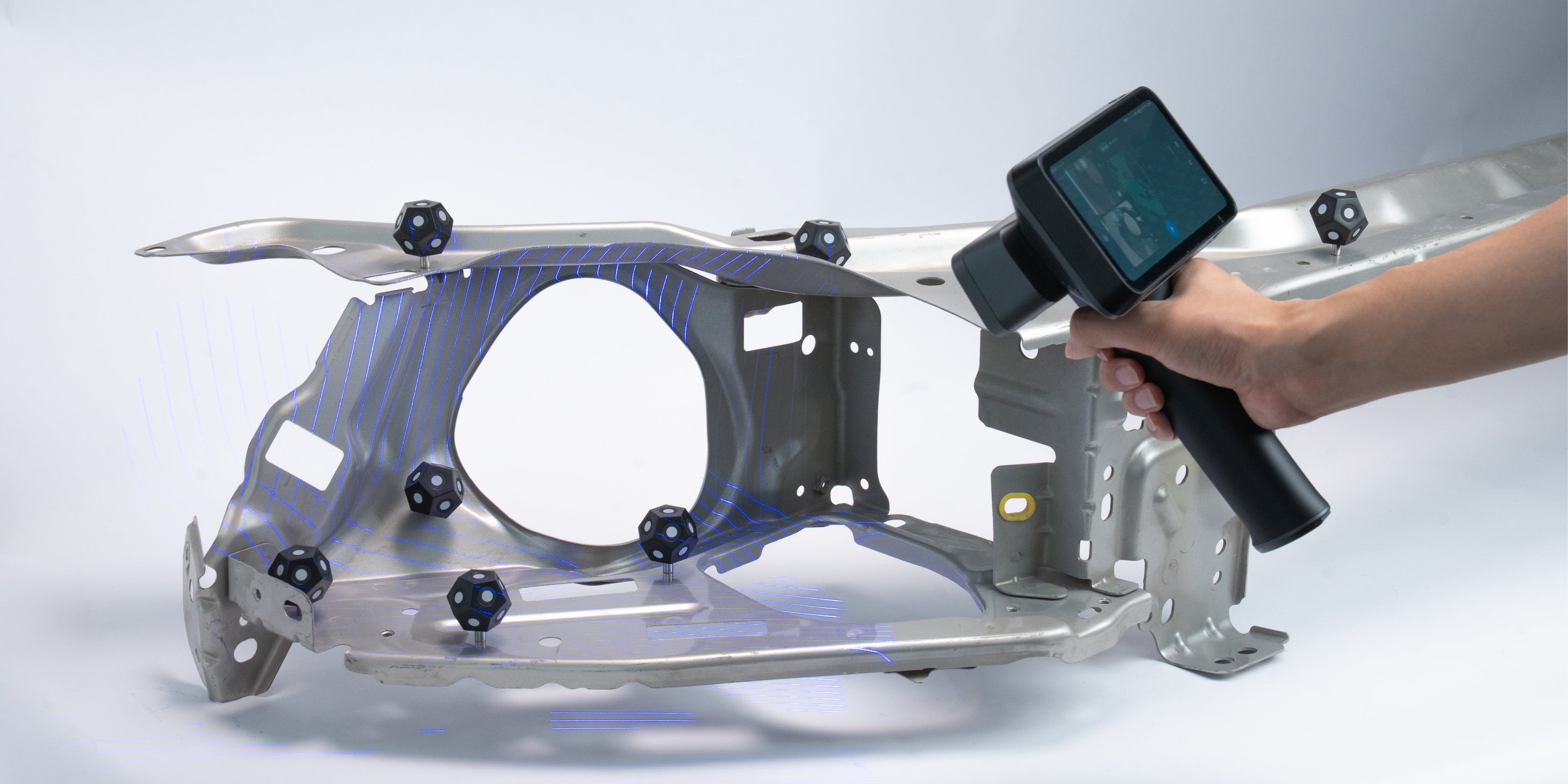

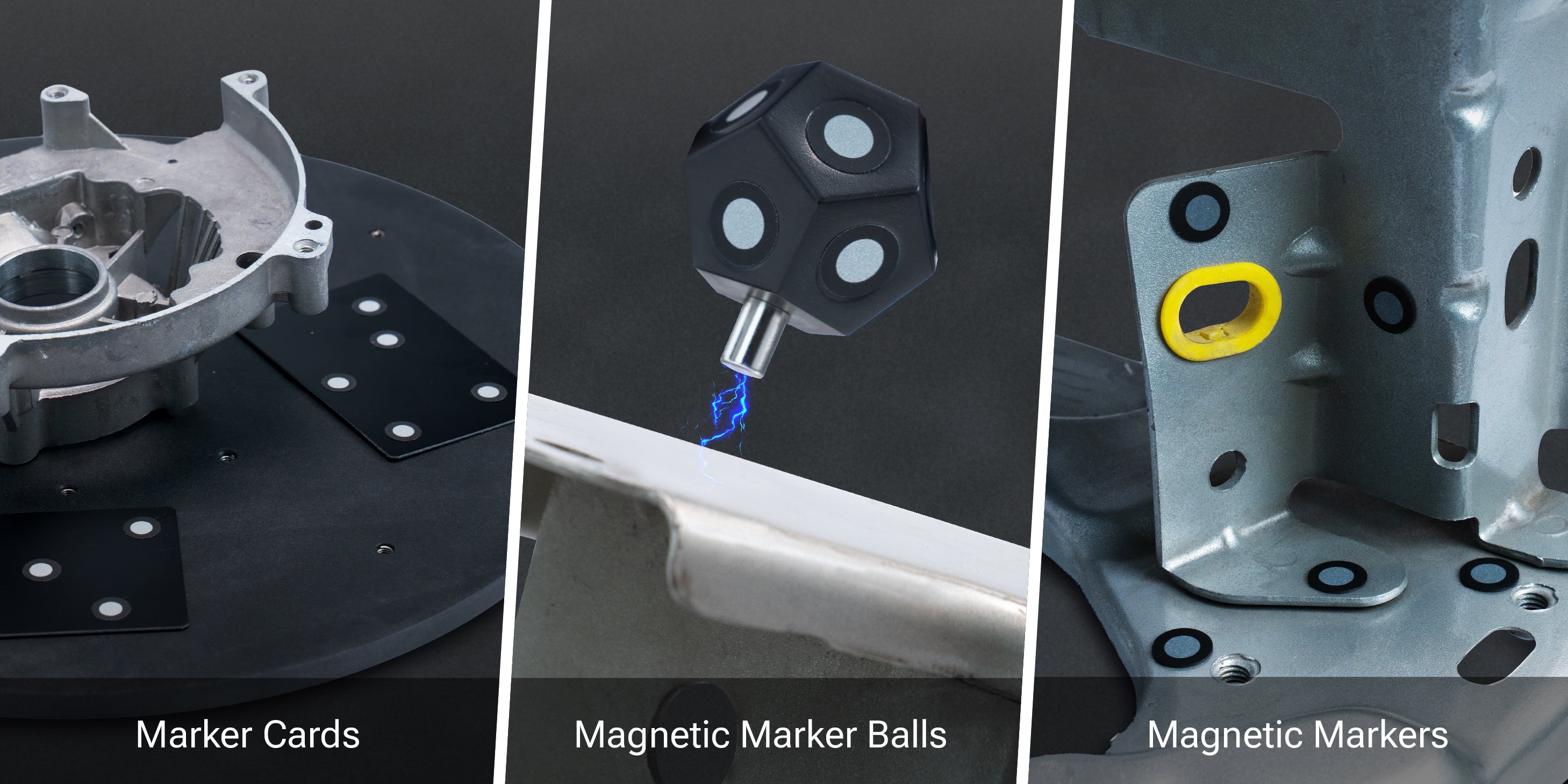

Flexible & Reusable

Magnetic and reusable components support flexible setup, attach easily to metal surfaces, and help prevent tracking loss; suitable for larger or irregular objects.

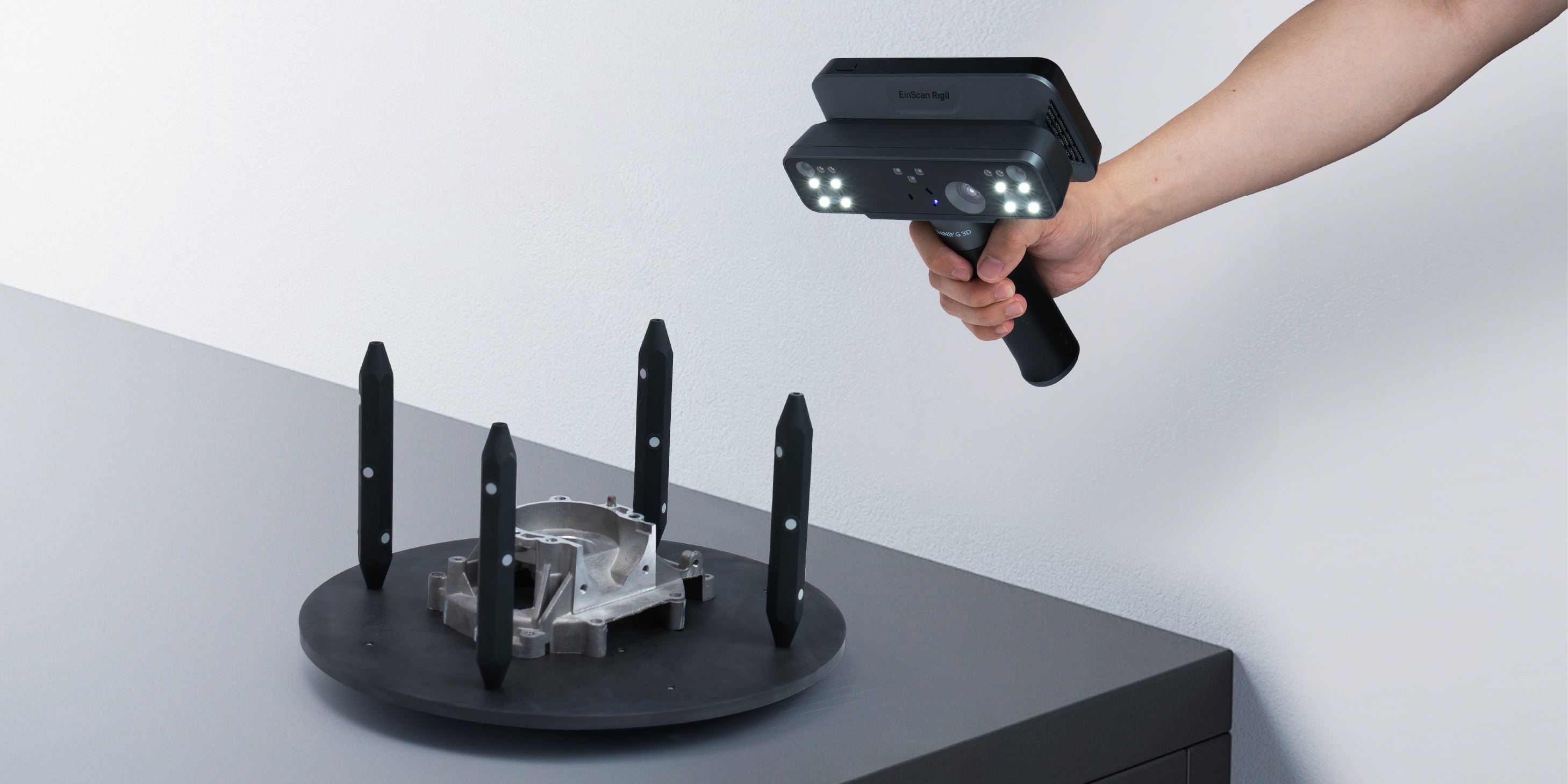

Assist Small & Medium Object Scanning

The Bar Marker works with the turntable to enhance scanning quality and increase efficiency for small and medium-sized objects.

Note: Based on actual usage needs, install the Bar Markers onto the turntable.

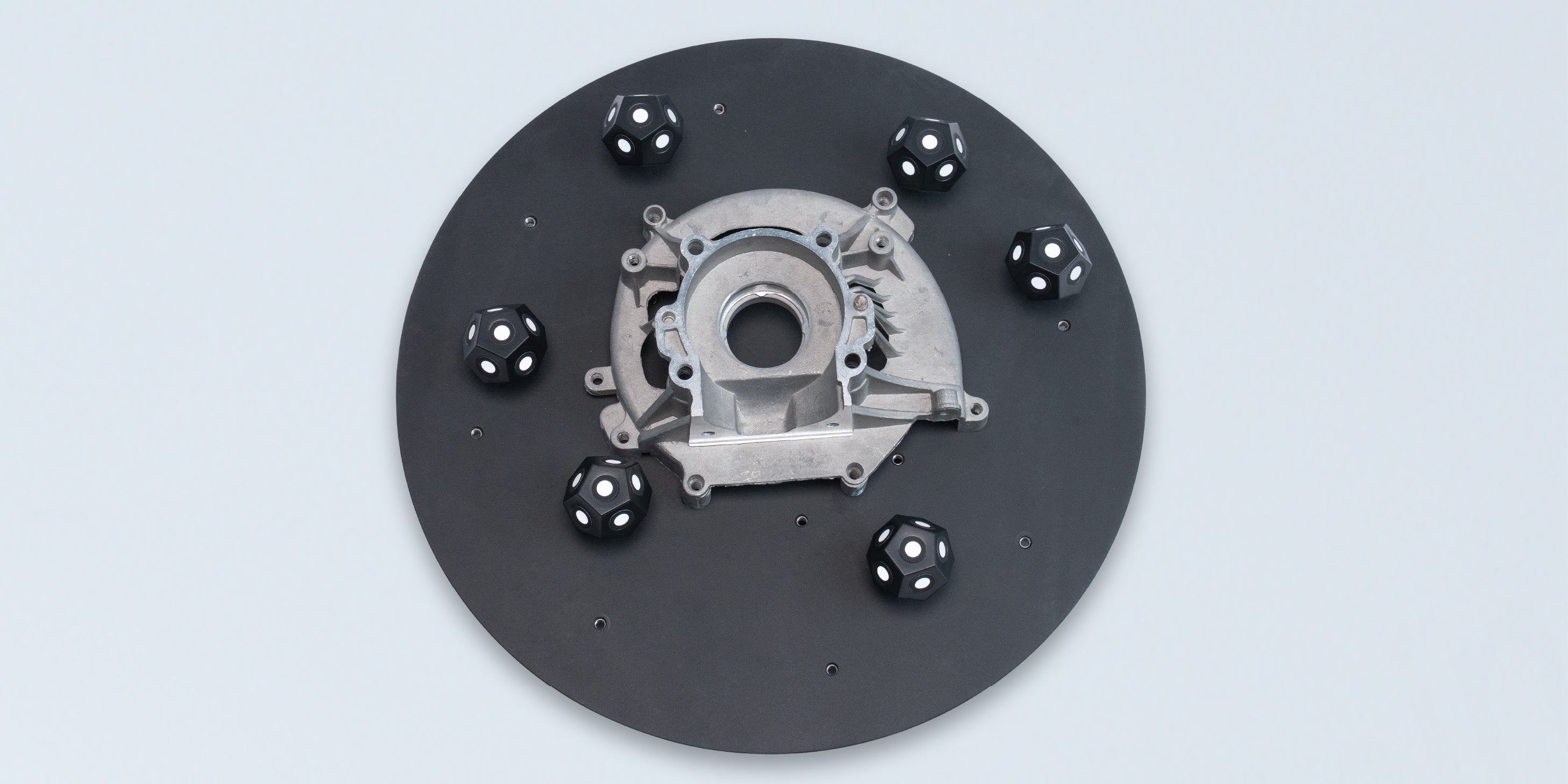

Marker Placement Guidelines

For optimal tracking during scanning, position all magnetic marker balls in open, unobstructed areas. Keep a spacing of 6–10 cm between markers whenever possible, ensuring at least 2 cm of minimum separation to maintain stable tracking performance.
